Reusable UI components

Add assignment, date, member, and workflow-diagram controls to a custom Workflows interface.

Workflows provides reusable React components in two packages. @sanity/workflow-components contains assignment and date controls, timestamps, and status indicators. @sanity/workflow-diagram renders workflow stages and transitions. Both work in App SDK applications, Studio integrations, and other React hosts.

These packages provide presentation, not an application framework. Your host supplies project members and workflow data, chooses which evaluated fields to render, and connects edits and actions through the reactive session.

Install the Workflows packages and the React, styled-components, and Sanity UI versions used by these examples:

npm install @sanity/workflow-components @sanity/workflow-diagram \
  @sanity/workflow-engine @sanity/ui@^4.2.1 \
  react@^19.2.7 react-dom@^19.2.7 styled-components@^6.4.2

pnpm add @sanity/workflow-components @sanity/workflow-diagram \
  @sanity/workflow-engine @sanity/ui@^4.2.1 \
  react@^19.2.7 react-dom@^19.2.7 styled-components@^6.4.2

yarn add @sanity/workflow-components @sanity/workflow-diagram \
  @sanity/workflow-engine @sanity/ui@^4.2.1 \
  react@^19.2.7 react-dom@^19.2.7 styled-components@^6.4.2

bun add @sanity/workflow-components @sanity/workflow-diagram \
  @sanity/workflow-engine @sanity/ui@^4.2.1 \
  react@^19.2.7 react-dom@^19.2.7 styled-components@^6.4.2

Keep all Workflows packages on one release. React, React DOM, and styled-components must each resolve to one shared copy in your application.

If your interface uses App SDK hooks, complete the App SDK installation before connecting these controls to live data.

Workflows components and diagrams use Sanity UI 4. Wrap your interface in its theme provider:

import {studioTheme, ThemeProvider} from '@sanity/ui'

<ThemeProvider theme={studioTheme}>
  <WorkflowInterface />
</ThemeProvider>

Choose a component by the interaction your interface needs. Each table lists the props a host application sets for that component family.

Select people for personal assignments or select project roles to offer work to a group. If any person is assigned, role selections no longer put that task in other people’s lists. Store a role’s machine name, not its display title. Role aliases let people with another role qualify for an assignment without adding the task to their role group’s list.

Use badges to display stored user and role assignees.

import {AssigneeBadges} from '@sanity/workflow-components'

<AssigneeBadges assignees={assignees} vocabulary={{members, roles}} />

Use AssigneeStack to display an assignment in a dense row. People appear as round avatars, roles as square avatars, and optional glyphs follow both. At most three slots are visible, including an overflow count. Your host supplies accessible labels and full names in surrounding or hover content.

import {AssigneeStack} from '@sanity/workflow-components'

<AssigneeStack members={assignedMembers} roles={assignedRoles} />

Use MemberAvatar for a project member and RoleAvatar for a project role. Missing member photos fall back to initials. Role avatars are square and use the role title when available. Your host supplies accessible labels and full-name tooltips for individual avatars and avatar groups.

import {MemberAvatar, MemberAvatarGroup} from '@sanity/workflow-components'

<MemberAvatar imageUrl={member.imageUrl} name={member.displayName} />
<MemberAvatarGroup members={members} />

Use MemberPicker for choosing one project member.

import {MemberPicker} from '@sanity/workflow-components'

<MemberPicker
  {...members}
  onSelect={setMember}
  selectedIds={selectedIds}
/>

Use AssigneePicker for assignments that accept people and roles. Pass maxUsers={1} for a singular assignee field: selecting another person replaces the current person and keeps the selected roles. eligibleRoles limits new choices to people who qualify for those roles. Role rows show a count of eligible people.

This example starts with work offered to the editor role and allows one person to be selected. Replace editor with a role in your project. Supply directory from useProjectMembers(projectId) and, if present, roleAliases from the workflow definition returned by the engine. This example keeps selection in local React state; the field-editing examples on this page show how to commit it.

import {useState} from 'react'
import {
  AssigneePicker,
  type ProjectMembersState,
} from '@sanity/workflow-components'
import type {Assignee, WorkflowDefinition} from '@sanity/workflow-engine'

export function ReviewAssigneePicker({
  directory,
  roleAliases,
}: {
  directory: ProjectMembersState
  roleAliases?: WorkflowDefinition['roleAliases']
}) {
  const [assignees, setAssignees] = useState<readonly Assignee[]>([
    {type: 'role', role: 'editor'},
  ])

  return (
    <AssigneePicker
      {...directory}
      eligibleRoles={['editor']}
      maxUsers={1}
      onChange={setAssignees}
      roleAliases={roleAliases}
      value={assignees}
    />
  )
}

Pickers place the current user first, then sort other people by display name. Search matches names, email addresses, role names, and role titles. Hovering a person shows their email, identity-provider badge, current-user status, and project roles. Use eligibleRoles and roleAliases to constrain new assignment choices. Continue to respect the evaluated field and action verdicts when committing changes.

A non-empty role catalog controls the offered roles, including roles with no holders. If the catalog is empty or unavailable, the picker uses member-held roles. A role already stored in the value remains visible and removable.

Use DatePicker for selection only. ClearableDatePicker adds an explicit clear action.

import {ClearableDatePicker, DatePicker} from '@sanity/workflow-components'

<DatePicker onSelect={setDate} value={date} />

<ClearableDatePicker
  clearLabel="Clear due date"
  onClear={() => setDueDate(undefined)}
  onPick={setDueDate}
  value={dueDate}
/>

Use ProgressBar to display a progress field. It does not edit the field.

import {ProgressBar} from '@sanity/workflow-components'

<ProgressBar label="Content import" value={62.5} />

Use these components to show when work started and whether it has finished:

• AgoStamp displays a compact age and an absolute local timestamp on hover. Pass an ISO timestamp and update the caller-owned now value; the component starts no timer. Invalid timestamps display a dash, and future timestamps display “just now.”
• ActivityStatusIcon displays active, done, failed, or skipped activity status. Unknown values use a muted empty icon. Include a text label when the icon is the only status indicator.
• StartIncompleteBadge marks a workflow whose start has not finished.

Pass an activity’s status, the workflow’s start timestamp, and its incomplete-start state from your host. This example renders them under the Sanity UI theme provider configured for the interface:

import {Flex, Text} from '@sanity/ui'
import {
  ActivityStatusIcon,
  AgoStamp,
  StartIncompleteBadge,
} from '@sanity/workflow-components'

export function WorkflowStatus({
  activityStatus,
  startedAt,
  startIncomplete,
  now,
}: {
  activityStatus: string
  startedAt: string
  startIncomplete: boolean
  now: Date
}) {
  return (
    <Flex align="center" gap={3}>
      <ActivityStatusIcon status={activityStatus} />
      <Text>{activityStatus}</Text>
      <AgoStamp at={startedAt} now={now} />
      {startIncomplete && <StartIncompleteBadge />}
    </Flex>
  )
}

To reuse whole tables inside Studio, see Embed tables in a custom Studio tool.

Member-aware components consume ProjectMembersState, which contains members, the project role catalog, and loading state. App SDK applications can load it with useProjectMembers(projectId). See Edit project-member assignments.

A resolved ProjectMember.id is the account-global sanityUserId stored in user assignments. If the profile cannot supply that ID, the row retains its project membership ID. The engine rejects new assignments that still use an unresolved project ID.

• assignmentMatch(members, identity)(members, identity): AssignmentMatch: 'user' | 'role' | undefined

  Reports whether the supplied identity holds the assignment directly or through a literal project role. Any direct user member takes precedence over every role route. Role aliases do not affect this match.

  Parameters

  • members

    readonly Assignee[]

    The complete user-and-role assignment list.

  • identity

    AssignmentIdentity

    An object with the account-global userId and literal project roles.

• roleMemberCount(args)(args.members, args.requiredRoles, args.roleAliases): number

  Counts distinct people who can fulfill any supplied role. It includes literal and alias-based eligibility and deduplicates by account-global user ID.

  Parameters

  • args.members

    readonly ProjectMember[]

    The loaded project member directory.

  • args.requiredRoles

    readonly string[]

    The project role names whose eligible people should be counted.

  • args.roleAliases

    RoleAliases | undefined

    The workflow definition’s normalized role aliases. Pass undefined when no aliases apply.

• memberCountLabel(count): string

  Formats a count as 0 members, 1 member, or 2 members.

  Parameters

  • count

    number

    The number of distinct people.

Role titles are presentation data. An assignee value continues to store the machine role name, so changing a project role's title does not change persisted workflow data.

Pass the resolved state to any member-aware component. The component renders loading and error states from the same object.

Editable controls render values from session.evaluation.editableFields. Commit changes through session.editField so the engine preserves workflow history and consistency. The App SDK guide shows the complete pattern.

The recipes connect these presentation components to evaluated fields and session commits. The wrappers in these recipes belong to the application, not the component package.

export function WorkflowEditableFields({
  evaluation,
  members,
  session,
}: {
  evaluation: WorkflowEvaluation
  members: ProjectMembersState
  session: Pick<WorkflowSession, 'editField'>
}) {
  return evaluation.editableFields.map((field) => {
    const key = `${field.scope}:${field.activity ?? ''}:${field.name}`
    if (isAssignmentField(field)) {
      return <AssignmentPicker field={field} key={key} members={members} session={session} />
    }
    if (isDateField(field)) {
      return <DateField field={field} key={key} session={session} />
    }
    return null
  })
}

The complete recipe includes the value-shape guards used by isAssignmentField and isDateField.

Render an enabled editor only when the evaluated field is editable. Surface rejected commits instead of assuming an optimistic edit succeeded.

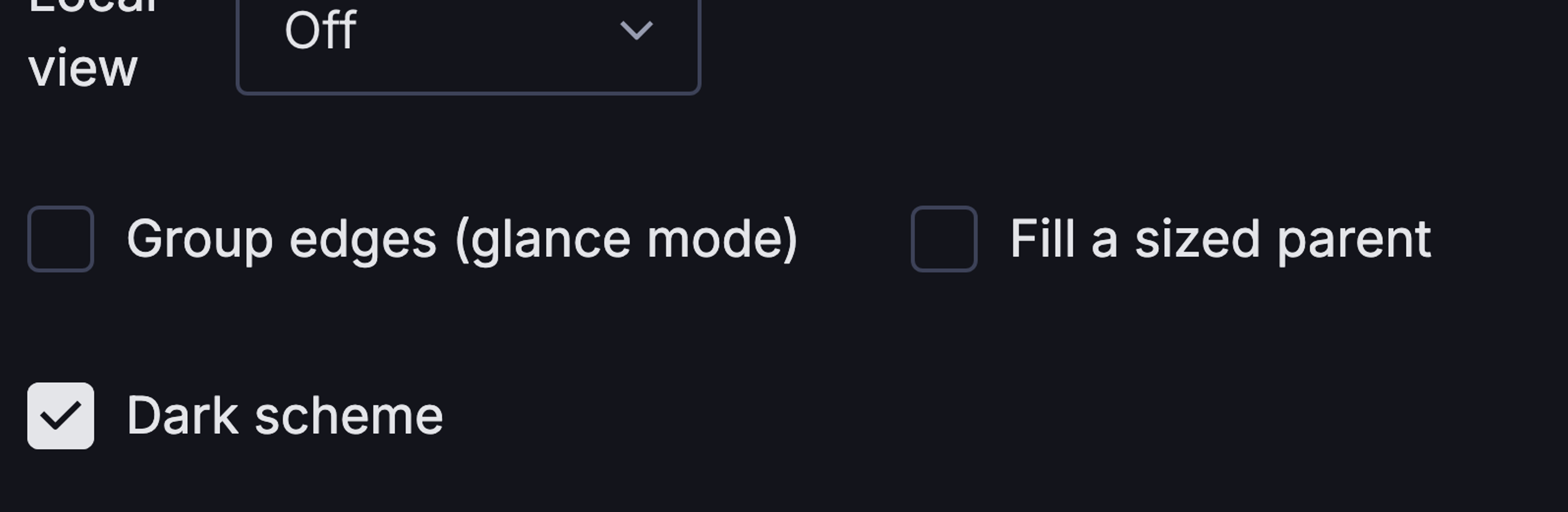

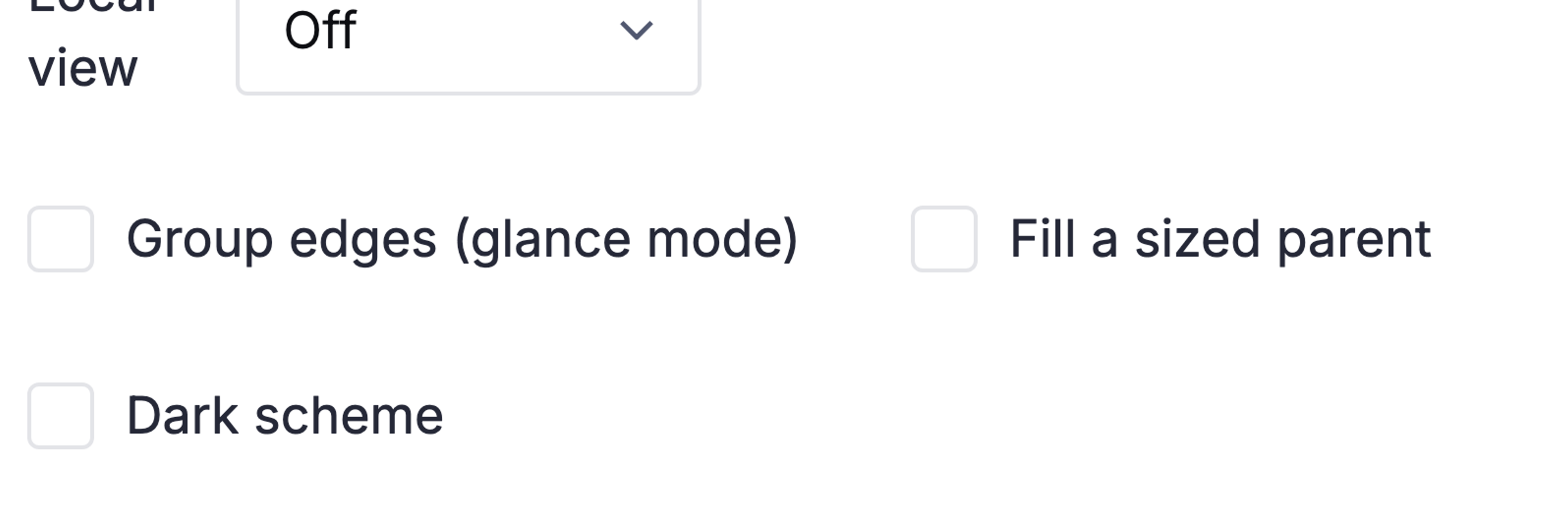

Pass the session’s WorkflowEvaluation to WorkflowDiagram. The pinned definition describes the graph, currentStage marks the active node, history draws the visited path, and evaluation supplies live explanations.

import {Card, Stack, Text} from '@sanity/ui'
import {WorkflowDiagram} from '@sanity/workflow-diagram'
import type {WorkflowEvaluation} from '@sanity/workflow-engine'

export function WorkflowDiagramRecipe({evaluation}: {evaluation: WorkflowEvaluation}) {
  return (
    <Card border padding={4} radius={3}>
      <Stack gap={4}>
        <Stack gap={2}>
          <Text size={2} weight="semibold">
            Workflow diagram
          </Text>
          <Text muted size={1}>
            Current stage and visited path
          </Text>
        </Stack>
        <WorkflowDiagram
          currentStage={evaluation.instance.currentStage}
          definition={evaluation.definition}
          evaluation={evaluation}
          explain
          history={evaluation.instance.history}
          key={evaluation.instance._id}
        />
      </Stack>
    </Card>
  )
}

The diagram uses color, line style, and opacity to distinguish run state. The current stage carries the accent color. Completed stages carry checkmarks. Traversed transitions are solid, while transitions not taken are dashed. Unvisited stages that can no longer be reached from the current stage fade with their transitions.

Hovering a stage restores its immediate neighborhood and animates dashed outgoing transitions toward their targets. Hovering a transition animates that transition. The animation is disabled when the user prefers reduced motion.

WS_CARD_TOKENS maps diagram colors to the surrounding Sanity UI card. Use --ws-path to customize the traversed path.

If a wrapper using WS_CARD_TOKENS needs explicit typography, set --ws-font and --ws-font-weight on it or derive them from useTheme_v2().font.text.

Key the diagram by instance ID to reset the viewport when opening a different workflow. Ordinary updates preserve the reader’s pan and zoom.

Enable explain to show gate explanations. Pass the live evaluation to add current verdicts.

• Build a workflow interface with the App SDK: build the instance-list and task-session application around these controls.
• Fields: understand editable field types, scopes, and stored values.
• History and audit trail: use instance history when presenting the workflow’s visited path.
