Editorial Workflows

Reusable UI components

Add assignment, date, member, and workflow-diagram controls to a custom Editorial Workflows interface.

Editorial Workflows exposes reusable React components in two packages. @sanity/workflow-components contains member, assignee, and date controls. @sanity/workflow-diagram renders a workflow definition and its live evaluation. They work in App SDK applications, Studio integrations, and other React hosts.

These packages provide presentation, not an application framework. Your host supplies project members and workflow data, chooses which evaluated fields to render, and connects edits and actions through the reactive session.

Install the packages

Install the components your interface uses:

Install the Editorial Workflows packages from one matching release.

The components use Sanity UI and must render under its theme provider:

import {studioTheme, ThemeProvider} from '@sanity/ui'

<ThemeProvider theme={studioTheme}>
  <WorkflowInterface />
</ThemeProvider>

Components

Choose a component by the interaction your interface needs. Each table lists the complete public props for that component family.

Assignment badges

Use badges to display stored user and role assignees.

import {AssigneeBadges} from '@sanity/workflow-components'

<AssigneeBadges assignees={assignees} members={members} />

Member avatars

Use avatars for resolved project members. Missing images fall back to initials.

import {MemberAvatar, MemberAvatarGroup} from '@sanity/workflow-components'

<MemberAvatar imageUrl={member.imageUrl} name={member.displayName} />
<MemberAvatarGroup members={members} />

Member picker

Use MemberPicker for choosing one project member.

import {MemberPicker} from '@sanity/workflow-components'

<MemberPicker
  {...members}
  onSelect={setMember}
  selectedIds={selectedIds}
/>

Assignee picker

Use AssigneePicker when an assignees field accepts both project members and project roles.

import {AssigneePicker} from '@sanity/workflow-components'

<AssigneePicker
  {...members}
  onChange={setAssignees}
  value={assignees}
/>

Date controls

Use DatePicker for selection only. ClearableDatePicker adds an explicit clear action.

import {ClearableDatePicker, DatePicker} from '@sanity/workflow-components'

<DatePicker onSelect={setDate} value={date} />

<ClearableDatePicker
  clearLabel="Clear due date"
  onClear={() => setDueDate(undefined)}
  onPick={setDueDate}
  value={dueDate}
/>

Progress

Use ProgressBar to display a progress field. It does not edit the field.

import {ProgressBar} from '@sanity/workflow-components'

<ProgressBar label="Content import" value={62.5} />

Supply project members

Member-aware components consume ProjectMembersState. App SDK applications can load it with useProjectMembers(projectId); see Edit project-member assignments. Other hosts adapt their project directory to the same shape.

The selected directory is project-scoped. Each ProjectMember.id is the account-global sanityUserId stored in user assignees.

Pass the resolved state to any member-aware component. The component renders loading and error states from the same object.

Connect editable fields

Editable controls render values from session.evaluation.editableFields. Commit changes through session.editField so the engine preserves workflow history and consistency. The App SDK guide shows the complete pattern. Pass the evaluated field directly to session.editField; editFieldTarget is for adapter-level controls.

The recipes connect these presentation components to evaluated fields and session commits. The wrappers shown below belong to the application, not the component package.

export function WorkflowEditableFields({
  evaluation,
  members,
  session,
}: {
  evaluation: WorkflowEvaluation
  members: ProjectMembersState
  session: Pick<WorkflowSession, 'editField'>
}) {
  return evaluation.editableFields.map((field) => {
    const key = `${field.scope}:${field.activity ?? ''}:${field.name}`
    if (isAssignmentField(field)) {
      return <AssignmentPicker field={field} key={key} members={members} session={session} />
    }
    if (isDateField(field)) {
      return <DateField field={field} key={key} session={session} />
    }
    return null
  })
}

The complete recipe includes the value-shape guards used by isAssignmentField and isDateField.

The component recipes contain the complete assignment, date parsing, serialization, mutation, and error-handling code.

Render an enabled editor only when the evaluated field is editable. Surface rejected commits instead of assuming an optimistic edit succeeded.

Render the workflow diagram

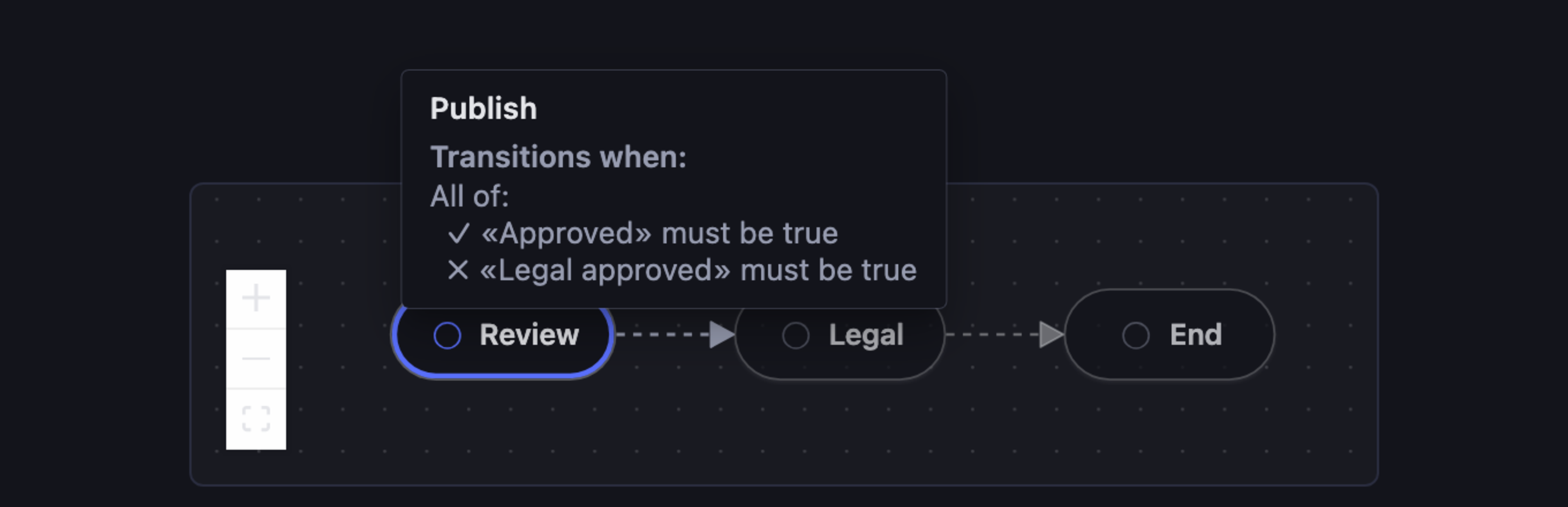

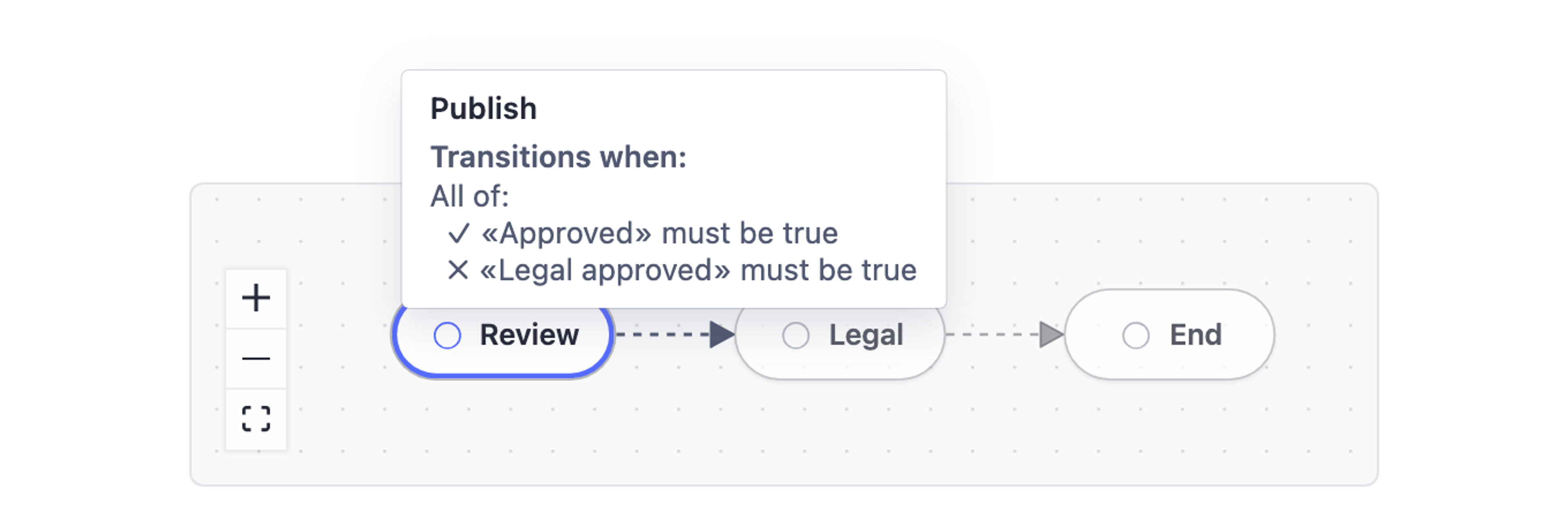

Pass the session’s WorkflowEvaluation to WorkflowDiagram. The pinned definition describes the graph, currentStage marks the active node, history draws the visited path, and evaluation supplies live explanations.

Loading...
import {Card, Stack, Text} from '@sanity/ui'
import {WorkflowDiagram} from '@sanity/workflow-diagram'
import type {WorkflowEvaluation} from '@sanity/workflow-engine'

export function WorkflowDiagramRecipe({evaluation}: {evaluation: WorkflowEvaluation}) {
  return (
    <Card border padding={4} radius={3}>
      <Stack gap={4}>
        <Stack gap={2}>
          <Text size={2} weight="semibold">
            Workflow diagram
          </Text>
          <Text muted size={1}>
            Current stage and visited path
          </Text>
        </Stack>
        <WorkflowDiagram
          currentStage={evaluation.instance.currentStage}
          definition={evaluation.definition}
          evaluation={evaluation}
          explain
          history={evaluation.instance.history}
          key={evaluation.instance._id}
        />
      </Stack>
    </Card>
  )
}
  • definition

    WorkflowDefinition

    Complete workflow definition to render.

  • currentStage

    string | undefined

    Stage to highlight as current.

  • selectedStage

    string | undefined

    Controlled inspected-stage selection.

  • onSelectStage

    ((stage: string | undefined) => void) | undefined

    Handles stage or canvas selection.

  • history

    readonly HistoryEntry[] | undefined

    Tones visited stages and traversed transitions.

  • guardCount

    number | undefined

    Shows the active guard count on the current stage.

  • gatedTransitions

    readonly string[] | undefined

    Transition names that should show a locked marker.

  • local

    LocalView | undefined

    Limits the graph to context around the current stage.

  • static

    boolean | undefined

    Disables pan, zoom, and zoom controls.

  • devMode

    boolean | undefined

    Shows machine names and raw conditions.

  • explain

    boolean | undefined

    Shows human-readable gate explanations.

  • evaluation

    WorkflowEvaluation | undefined

    Adds live verdicts when explain is enabled.

  • height

    number | string | undefined

    Maximum canvas height. Defaults to 360.

Key the diagram by instance ID so each opened workflow receives a fresh fitted viewport.

Enable explain to show gate explanations. Pass the live evaluation to add current verdicts.

Next steps

  • App SDK: build the instance-list and task-session application around these controls.
  • Fields: understand editable field types, scopes, and stored values.
  • History and audit trail: use instance history when presenting the workflow’s visited path.
