Create a time duration object field

Delight your content creators with intelligent inputs for more complex data structures

What you need to know:

This guide assumes that you know how to set up and configure a Sanity Studio and have basic knowledge about defining a schema with document and field types. Basic knowledge of React and TypeScript is also useful, although you should be able to copy-paste the example code to get a runnable result.

Custom form components by example

One of Sanity Studio’s most powerful features is custom drop-in replacements for form fields. This guide is one in a series of code examples.

You can get more familiar with the Form Components API in the documentation.

What you’ll be making

An object with two string fields for time, with a custom input that allows you to reset one or all fields back to a default value.

Get started

In this guide, you’ll create a duration object type with two fields: a start and finish time. Times will be selected from a list of predefined options. You’ll also learn how to use paths to make fine-grained updates to object fields without replacing the entire object value.

Create the following schema files in your Studio and register them to the schema in sanity.config.ts

First, you’ll need to register a field to select the time:

// ./schema/duration/timeValueType.ts

import {defineType} from 'sanity'

export const timeValueType = defineType({
  name: 'timeValue',
  title: 'Time',
  type: 'string',
  options: {
    list: ALLOWED_TIMES(),
  },
})

// A function that generates an array of times from 00:00 to 23:30
export function ALLOWED_TIMES() {
  const times = []
  for (let h = 0; h < 24; h++) {
    for (let m = 0; m < 60; m += 30) {
      times.push(`${h.toString().padStart(2, '0')}:${m.toString().padStart(2, '0')}`)
    }
  }
  return times
}

Next, a duration field which is an object with start and finish values:

Lastly, you’ll need a document schema type to render this custom field. The below example is a promotion document schema with a title and the duration field.

With these files created and the schema types registered, you should be able to create a new promotion document type and see the following fields:

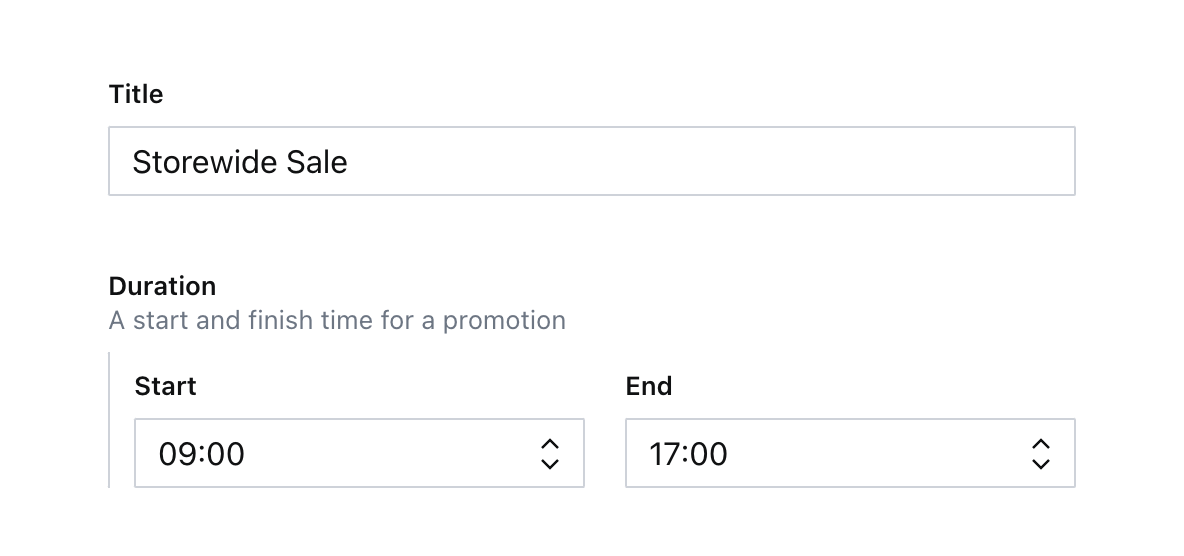

A string field and an object of two string fields with preconfigured options

Content creators can now create new documents with some valid values. However, it’s not visually interesting. It’s not possible to remove values. You could set an initial value on the field but cannot “reset” those values.

Create a custom duration input

More complex field structures mean slightly more complex custom inputs.

Create the component as shown below. Note that this field type’s props are now a generic, which can take the object's value.

Also, to render the object's fields individually, you cannot use props.renderDefault as that would render the entire object. Instead, search for the member you want to display and use the ObjectInputMember component.

The benefit of using this component and passing along props is that if any child fields also use custom inputs – they’ll still be used. You’re not overwriting the tree of customizations.

// ./schema/duration/DurationInput.tsx

import {Box, Stack, Button, Flex, Grid} from '@sanity/ui'
import {ObjectInputMember, ObjectInputProps} from 'sanity'

type DurationValue = {
  _type?: 'duration'
  start?: number
  end?: number
}

export function DurationInput(props: ObjectInputProps<DurationValue>) {
  const {members} = props

  const startMember = members.find((member) => member.kind === 'field' && member.name === 'start')
  const endMember = members.find((member) => member.kind === 'field' && member.name === 'end')

  if (!startMember || !endMember) {
    console.error(`Missing "start" or "end" member in DurationInput: "${props.schemaType.name}"`)
    return props.renderDefault(props)
  }

  // Pass along functions to each member so that it knows how to render
  const renderProps = {
    renderField: props.renderField,
    renderInput: props.renderInput,
    renderItem: props.renderItem,
    renderPreview: props.renderPreview,
  }

  return (
    <Stack space={3}>
      <Grid columns={2} gap={3}>
        <Flex align="flex-end" gap={2}>
          <Box flex={1}>
            <ObjectInputMember member={startMember} {...renderProps} />
          </Box>
          <Button mode="ghost" text="Reset" />
        </Flex>
        <Flex align="flex-end" gap={2}>
          <Box flex={1}>
            <ObjectInputMember member={endMember} {...renderProps} />
          </Box>
          <Button mode="ghost" text="Reset" />
        </Flex>
      </Grid>
      <Button text="Default Duration" mode="ghost" />
    </Stack>
  )
}

With this created, next you’ll assign it to the duration object:

Create a new promotion document, and you’ll see the updated object input with new buttons. Clicking those buttons won’t write anything, so you must change that next.

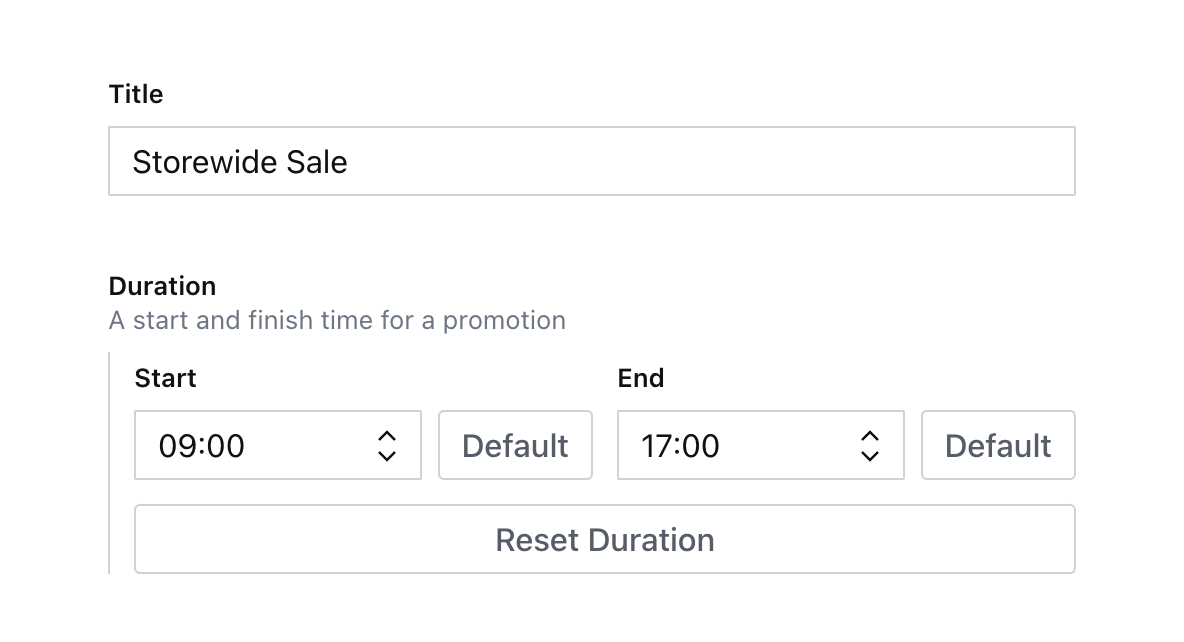

The object now has buttons to reset their values

Handling changes

You’ll need to access the onChange function from the component’s props to write patches to the document.

This function wraps any patch – such as setting or unsetting the value of a field – and ensures the rest of the Studio stays up to date with changes.

When customizing primitive input field components (like string, number, etc) you’re only updating the value of that field.

You can replace the entire field value working with objects or arrays, but it is cleaner to “surgically” update individual fields.

In the updated code below, the buttons have been given onClick handlers can either update the entire object when the “Default Duration” button is clicked. Or update a single field when either of the “Reset” buttons are clicked.

How these work is explained in more detail below.

// ./schema/duration/DurationInput.tsx

import {Box, Stack, Button, Flex, Grid} from '@sanity/ui'
import {ObjectInputMember, ObjectInputProps, set} from 'sanity'
import {useCallback} from 'react'

type DurationValue = {
  _type?: 'duration'
  start?: number
  end?: number
}

const DEFAULT_START = '09:00'
const DEFAULT_END = '17:00'

export function DurationInput(props: ObjectInputProps<DurationValue>) {
  const {onChange, members} = props

  const handleChange = useCallback(
    (event: React.MouseEvent<HTMLButtonElement>) => {
      const {name, value} = event.currentTarget

      if (name === 'reset') {
        // Reset the entire object with default values
        onChange(
          set({
            _type: 'duration',
            start: DEFAULT_START,
            end: DEFAULT_END,
          })
        )
      } else if (name === 'start' || name === 'end') {
        // Set the "_type" field if it's not already set
        // Update only the "start" or "end" field value
        // The second parameter is a "Path" to the field from the root object
        const patches =
          props?.value?._type === 'duration'
            ? [set(value, [name])]
            : [set('duration', ['_type']), set(value, [name])]

        onChange(patches)
      }
    },
    [onChange, props.value?._type]
  )

  const startMember = members.find((member) => member.kind === 'field' && member.name === 'start')
  const endMember = members.find((member) => member.kind === 'field' && member.name === 'end')

  if (!startMember || !endMember) {
    console.error(`Missing "start" or "end" member in DurationInput: "${props.schemaType.name}"`)
    return props.renderDefault(props)
  }

  // Pass along functions to each member so that it knows how to render
  const renderProps = {
    renderField: props.renderField,
    renderInput: props.renderInput,
    renderItem: props.renderItem,
    renderPreview: props.renderPreview,
  }

  return (
    <Stack space={3}>
      <Grid columns={2} gap={3}>
        <Flex align="flex-end" gap={2}>
          <Box flex={1}>
            <ObjectInputMember member={startMember} {...renderProps} />
          </Box>
          <Button
            mode="ghost"
            text="Default"
            name="start"
            value={DEFAULT_START}
            onClick={handleChange}
          />
        </Flex>
        <Flex align="flex-end" gap={2}>
          <Box flex={1}>
            <ObjectInputMember member={endMember} {...renderProps} />
          </Box>
          <Button
            mode="ghost"
            text="Default"
            name="end"
            value={DEFAULT_END}
            onClick={handleChange}
          />
        </Flex>
      </Grid>
      <Button text="Reset Duration" mode="ghost" name="reset" onClick={handleChange} />
    </Stack>
  )
}

Using `path` to make fine-grained changes

Write updates to an individual field by supplying a path parameter to the set() function. The path is an array of any combination of strings, indexes, or key values to target the change. The root of the path is the object itself.

This works in the unset() function as well!

Now click the buttons on your custom input to see how they can change either the individual field or the entire object.

Next steps

Add a validation rule to the duration object to ensure the end time is after the start time.
Or even better, add logic that makes end times before the start time unselectable (and vice-versa).
Calculate the hours and minutes between the start and finish times and display the duration in plain text (or use something like formatDuration from date-fns).
