Block

Schema type for block which provides a rich text editor for block content.

In order to activate the block content editor for Sanity Studio, you must make an array of blocks. In the schema, it looks like this in its simplest form:

{
  title: 'Content',
  name: 'content',
  type: 'array',
  of: [{type: 'block'}]
}

In other words, rich text is modeled as an array of content following the specification for Portable Text. What is stored in the database is an array of JSON objects describing the rich text content. This JSON data can later be used to produce HTML, React components, or other formats depending on the target requirements. This provides a lot of flexibility if you should later want to re-use your content across the web, apps, print, set-top-boxes, consoles, etc.

The block text type supports block styles, lists, decorators (bold, italic, etc.), custom content types (embedded objects), inline objects, and even marking up text with arbitrary object data (annotations). Learn more about how to configure the rich text editor.

• Requiredtype

  Value must be set to block. Also, blocks only make sense as member of an array, see examples below.

• Requiredname

  Required. The field name. This will be the key in the data record.

• title

  Human readable label for the field.

• styles

  This defines which styles that applies to blocks. A style is an object with a title (will be displayed in the style dropdown) and a value, e.g.: styles: [{title: 'Quote', value: 'blockquote'}]. If no styles are given, the default styles are H1 up to H6 and blockquote. A style named normal is reserved, always included and represents "unstyled" text. If you don't want any styles, set this to an empty array e.g.: styles: [].

• lists

  What list types that can be applied to blocks. Like styles above, this also is an array of "name", "title" pairs, e.g.: {title: 'Bullet', value: 'bullet'}. Default list types are bullet and number.

• marks

  An object defining which .decorators (array) and .annotations (array) are allowed. See example below.

• of

  An array of inline content types that you can place in running text from the Insert menu.

• icon

  To return an icon that is shown in the menus and the toolbar.

• description

  Short description to editors how the field is to be used.

• hidden

  If set to true, this field will be hidden in the studio. You can also return a callback function to use it as a conditional field.

• readOnly

  If set to true, this field will not be editable in the content studio. You can also return a callback function to use it as a conditional field.

• components

  Lets you provide custom components to override the studio defaults in various contexts. The components available are field, input, item, preview.

• deprecated

  Marks a field or document type as deprecated in the studio interface and displays a user-defined message defined by the single required reason property.

  If you deploy a GraphQL API schema, this property will translated into the @deprecated directive.

• spellCheck

  Enables or disables spellchecking in the Portable Text Editor. Defaults to true.

• required()

  Ensures that this field exists.

• custom(fn)

  Creates a custom validation rule.

With no custom configuration, the block editor supports:

• Block styles: Normal, Heading 1 to Heading 6, and blockquotes
• Decorators: Strong, emphasis, code, underline and strikethrough
• Lists: bullet list and ordered list
• Link: An annotation that is an object with a href with type url

Input

{
  title: 'Rich text example',
  name: 'myRichTextExample',
  type: 'array',
  of: [{type: 'block'}]
}

Response

{
  "myRichTextExample": [{
    "style": "normal",
    "_type": "block",
    "markDefs": [],
    "children": [
      {
        "_type": "span",
        "text": "That was ",
        "marks": []
      },
      {
        "_type": "span",
        "text": "bold",
        "marks": [
          "strong"
        ]
      },
      {
        "_type": "span",
        "text": " of you.",
        "marks": []
      }
    ]
  },
  {
    "style": "normal",
    "_type": "block",
    "markDefs": [],
    "children": [
      {
        "_type": "span",
        "text": "Amazing, actually.",
        "marks": []
      }
    ]
  }]
}

This defines a block array that can include both text, actors, and (inline) images.

{
  title: 'Rich text',
  type: 'array',
  of: [
    {type: 'block'},
    {type: 'actor'},
    {type: 'image', icon: myIcon}
  ]
}

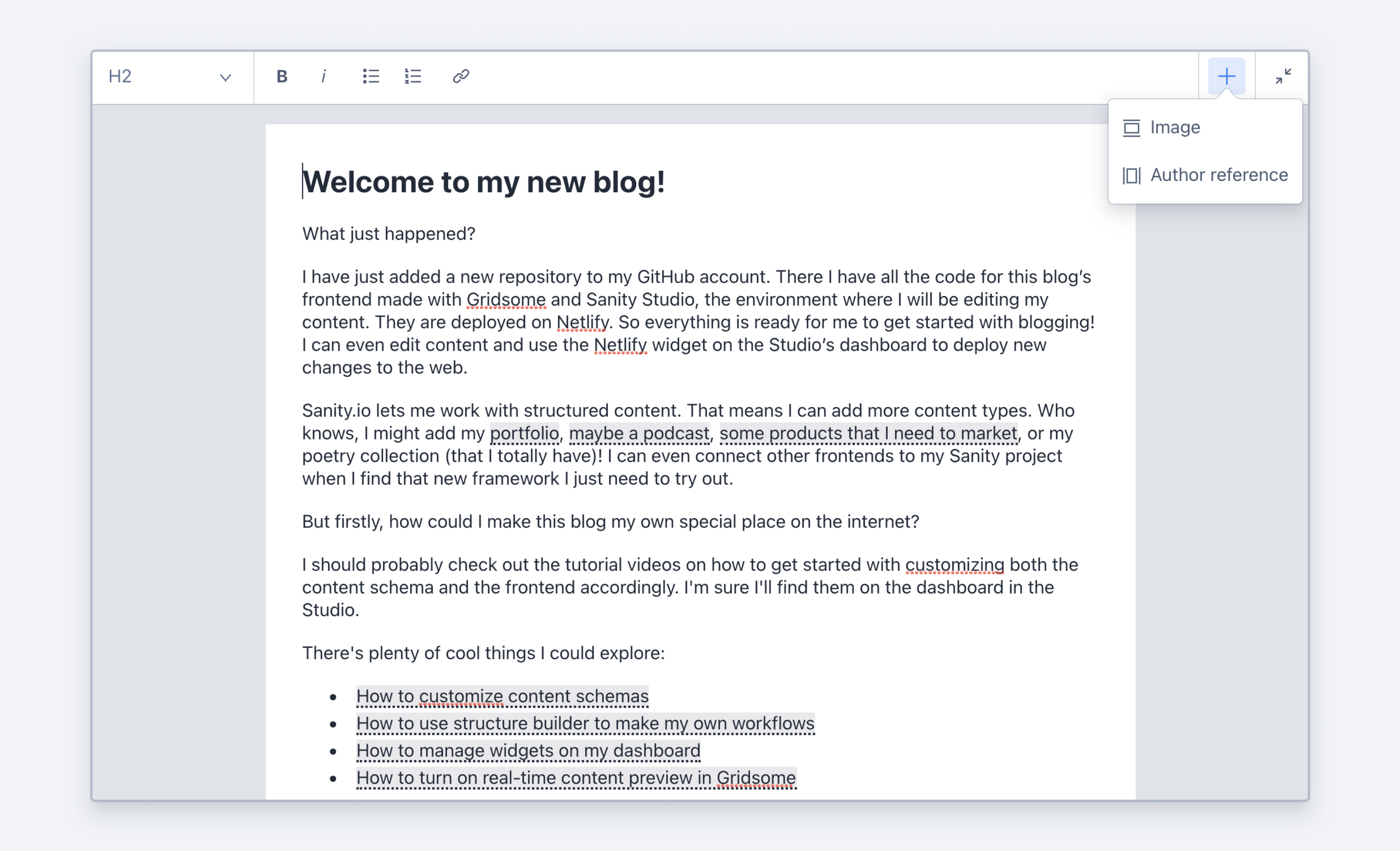

The editor will now get an insertion (+) icon in the text editor that can be used to insert actors or images as content blocks in the text. The data stored in the array for these objects are exactly as if they were in a regular array of objects, because they are.

These objects are embedded on the block level, but you may also need objects that appear inline with text useful for stuff like footnotes, ticker-symbols or sparklines. Add these to an array under the of key in the block type object:

{
  title: 'Rich text',
  type: 'array',
  of: [
    {
      type: 'block',
      of: [
        {type: 'footnote'}
      ]
    }
  ]
}

Almost every aspect of the block editor and the content it produces is configurable. You may want to restrict certain types of decorators or add your own, use your own list styles, annotate text with custom data (e.g. a citation or reference), or support highlighted text.

You can add a component property to a block, decorator, or annotation that contains callback functions to control how the content is rendered in the studio, and you can add an icon property to render in the tool bar of the editor.

{
  name: 'customized',
  title: 'Customized block type',
  type: 'array',
  of: [
    {
      type: 'block',
      // ...
      marks: {
        decorators: [
          { title: "Strong", value: "strong" },
          { title: "Emphasis", value: "em" },
          {
            title: "Sup",
            value: "sup",
            icon: () => <div>x<sup>2</sup></div>,
            component: ({ children }) => <sup>{children}</sup>
          },
        ],
      },
      // ...
    }
  ]
}

{
  name: 'customized',
  title: 'Customized block type',
  type: 'array',
  of: [
    {
      type: 'block',
      // Only allow these block styles
      styles: [
        {title: 'Normal', value: 'normal'},
        {title: 'H1', value: 'h1'},
        {title: 'H2', value: 'h2'}
      ],
      // Only allow numbered lists
      lists: [
        {title: 'Numbered', value: 'number'}
      ],
      marks: {
        // Only allow these decorators
        decorators: [
          {title: 'Strong', value: 'strong'},
          {title: 'Emphasis', value: 'em'}
        ],
        // Support annotating text with a reference to an author
        annotations: [
          {name: 'author', title: 'Author', type: 'reference', to: {type: 'author'}}
        ]
      }
    }
  ]
}
