MapLibre map input

sanity-plugin-maplibre

Map inputs for Sanity Studio that need no API key. It's a drop-in replacement for @sanity/google-maps-input built on open-source maps instead of Google:

• MapLibre GL JS renders the map.
• OpenFreeMap serves the tiles, from OpenStreetMap data.
• Photon or Nominatim handle address search, or plug in your own.

It replaces the geopoint input and adds a geopointRadius type. Existing content works as it is (Migrating).

Contents

• Install and Usage
• Configuration
• Map styles: switching, per field, PMTiles
• Geocoding: Photon, Nominatim, your own
• Components
• Migrating from @sanity/google-maps-input
• How previews work, Network and CSP
• Troubleshooting and Limitations
• Development

Install

npm install sanity-plugin-maplibre

It works with Sanity Studio v5 and v6 (React 19.2), with nothing extra to set up on either.

Usage

// sanity.config.ts
import { defineConfig } from "sanity"
import { maplibreInput } from "sanity-plugin-maplibre"

export default defineConfig({
  // ...
  plugins: [maplibreInput()],
})

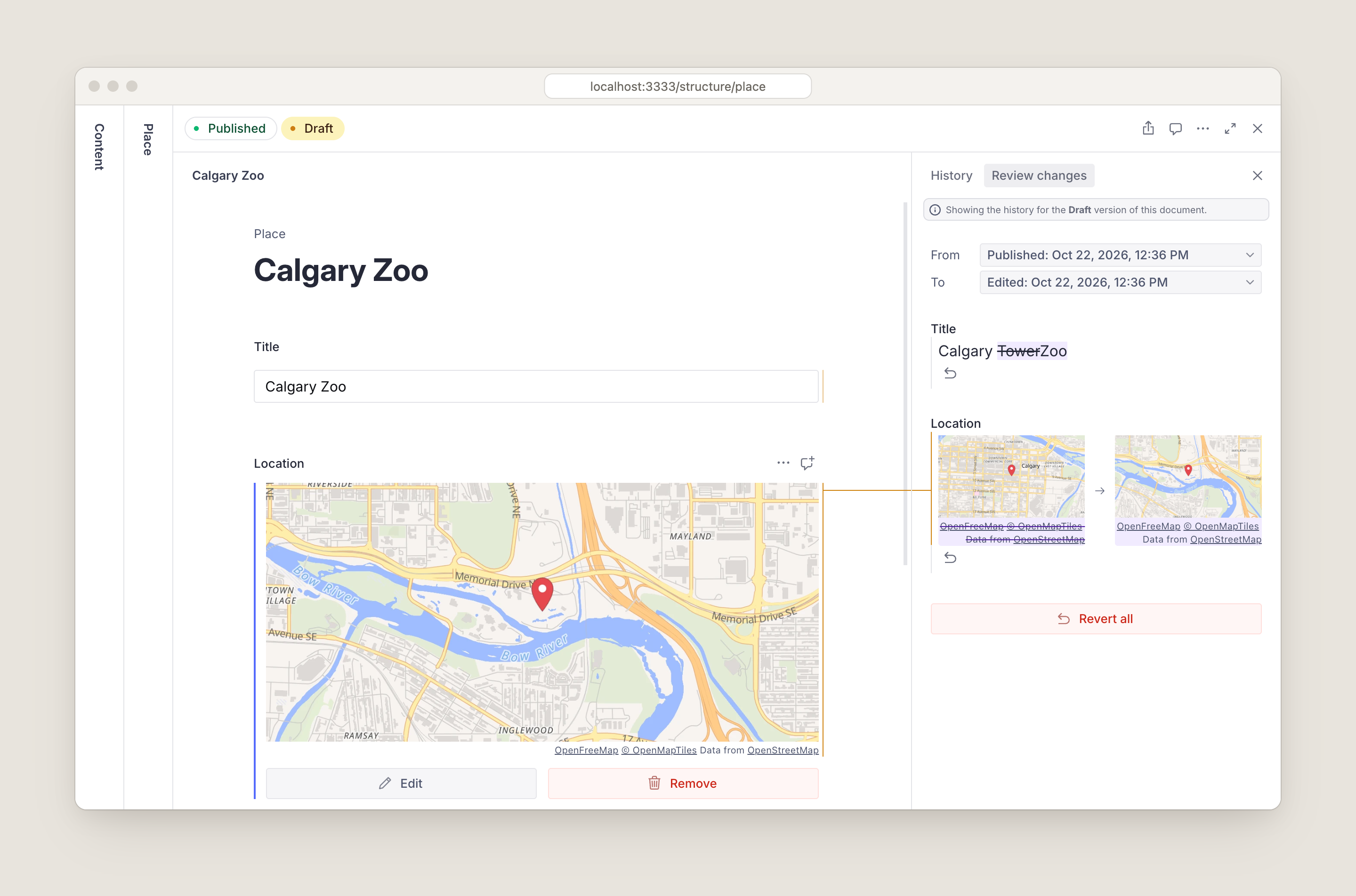

Every geopoint field now uses the map input, including geopoint fields inside arrays and objects:

defineField({ name: "location", title: "Location", type: "geopoint" })

The field shows a map of the point, with Edit and Remove. Edit (or double-clicking the map) opens a larger map where editors click to place the point, drag the marker or search for an address. An empty field can also be set without a mouse: pan the map with the arrow keys, then choose Place marker at map center.

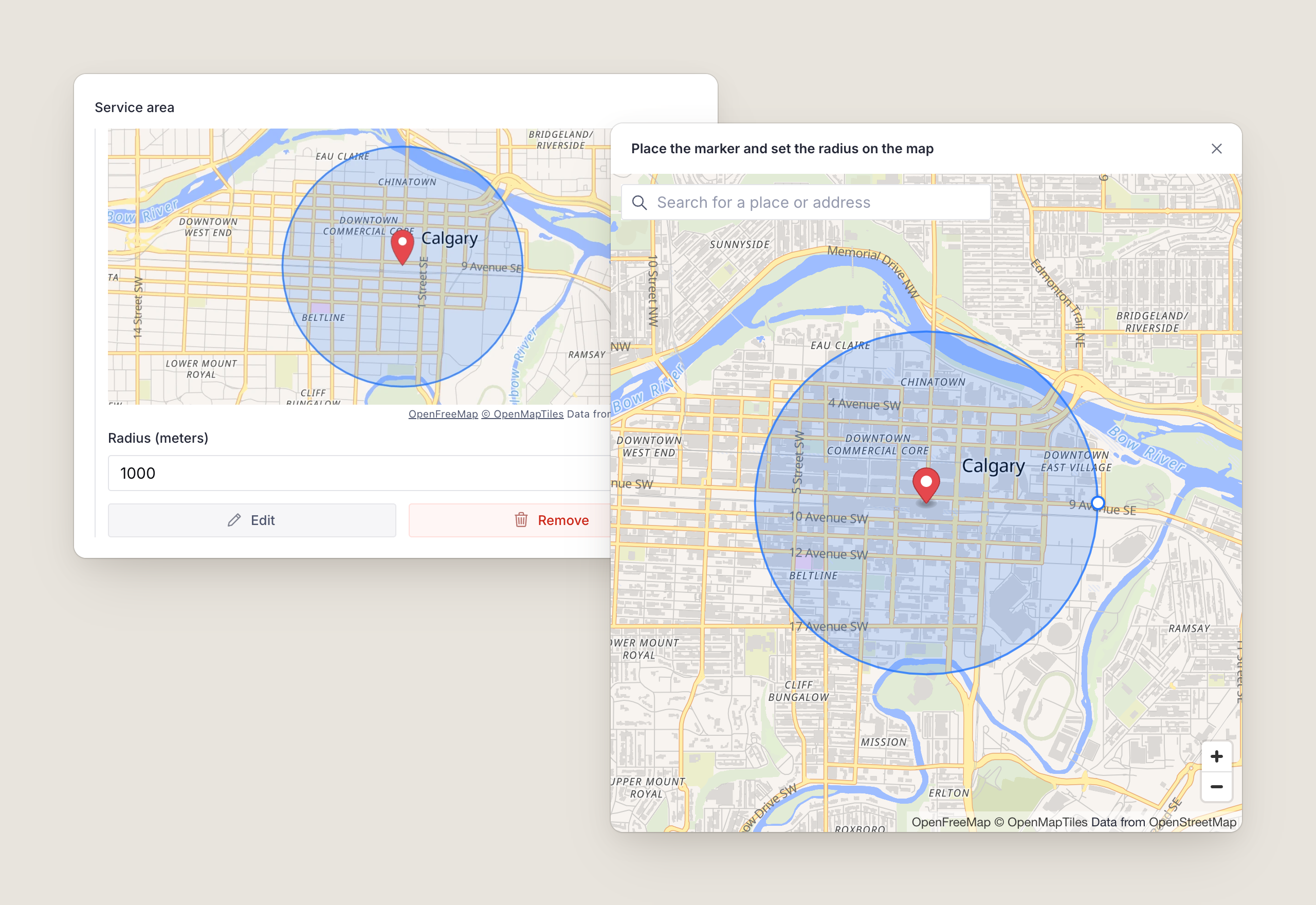

The plugin also registers geopointRadius, a point with a radius stored in meters. Editors drag the circle's edge on the map or type the number:

defineField({ name: "serviceArea", title: "Service area", type: "geopointRadius" })

{ "_type": "geopointRadius", "lat": 51.0443, "lng": -114.0631, "radius": 1500 }

In arrays

Items in an array of geopoint or geopointRadius show a small map of the point (and the circle, for a radius), with the coordinates as the title and the radius as the subtitle, in place of Sanity's plain lat: …, lng: … text. To choose their style, see Per-field styles.

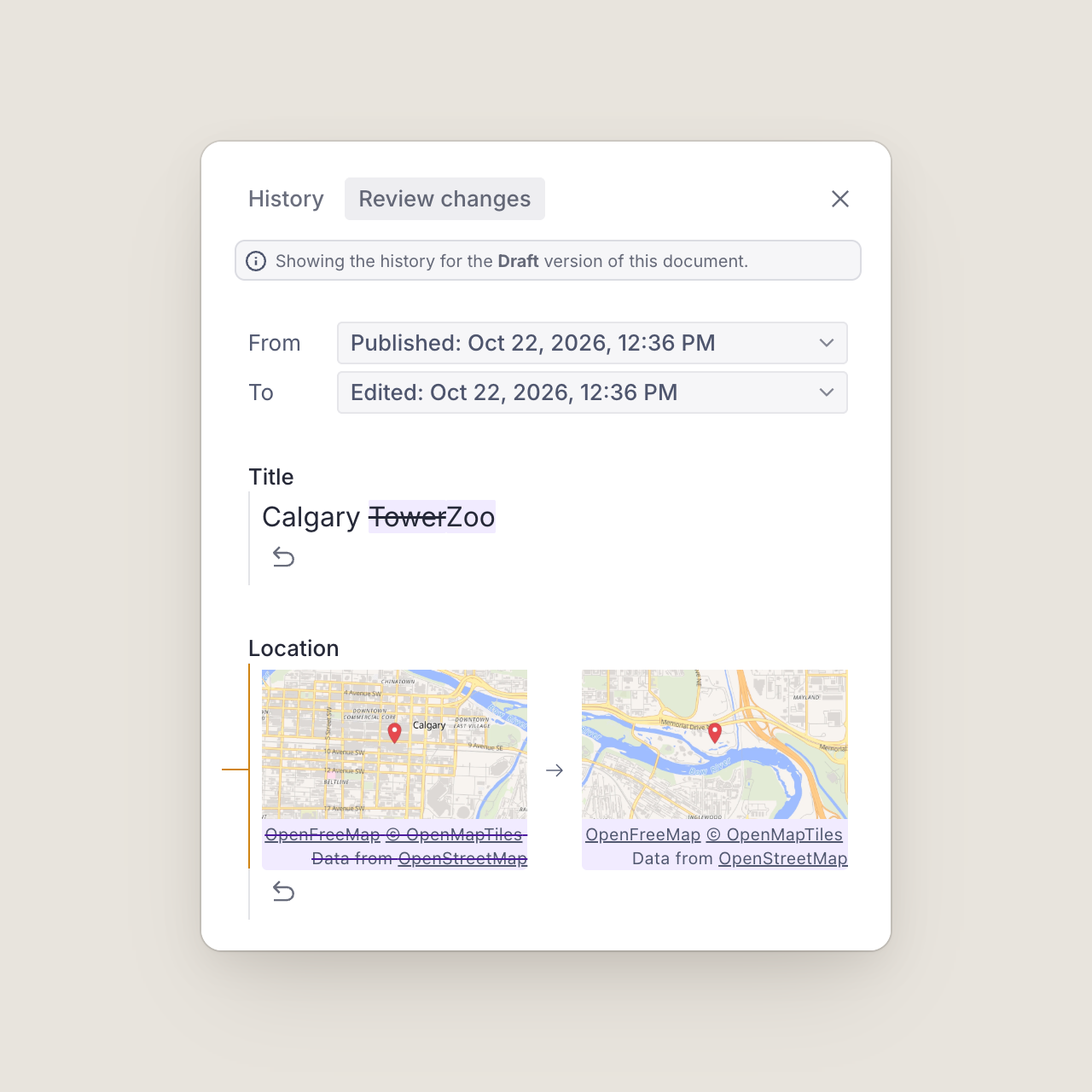

Reviewing changes

geopointRadius fields show a before and after map in Review changes automatically. geopoint is a built-in Sanity type; add the diff to each field where you want it:

import { GeopointDiff } from "sanity-plugin-maplibre"

defineField({ name: "location", type: "geopoint", components: { diff: GeopointDiff } })

Configuration

All options are optional.

maplibreInput({
  defaultLocation: { lat: 51.0447, lng: -114.0719 },
  defaultZoom: 11,
  saveZoom: true,
  radiusUnit: "mi",
  geocoder: "photon",
})

An invalid option throws an error naming it as soon as the Studio loads.

Map styles

Maps use OpenFreeMap's Liberty style, and its Dark style while the Studio is dark. Any MapLibre style works instead: another OpenFreeMap style, your own, or a commercial provider's (with its key in the URL).

import { maplibreInput, openFreeMapStyle } from "sanity-plugin-maplibre"

maplibreInput({ style: openFreeMapStyle("positron") }) // "liberty", "bright", "positron", "dark" or "fiord"
maplibreInput({ style: "/static/brand-style.json" }) // a JSON file in your Studio's static/ folder
maplibreInput({ style: brandStyle }) // a style object, such as one built with @builtbyfield/maplibre-expr

Attribution always shows: on the map it can't collapse, and previews show it as a caption. Make sure your own styles' sources declare theirs.

Switching styles

With styles, the map dialog gets a style menu, and each editor's choice is remembered. Previews and Review changes always use the default style.

maplibreInput({
  styles: [
    { name: "streets", title: "Streets", style: openFreeMapStyle("liberty"), dark: openFreeMapStyle("dark") },
    { name: "light", title: "Light", style: openFreeMapStyle("positron"), dark: openFreeMapStyle("dark") },
    { name: "brand", title: "Brand", style: "/static/brand-style.json" },
  ],
  defaultStyle: "streets",
})

Per-field styles

A field can set its own styles with options.maplibre, which overrides the plugin's:

defineField({
  name: "trailhead",
  type: "geopoint",
  options: { maplibre: { style: openFreeMapStyle("bright") } },
})

defineField({
  name: "venue",
  type: "geopoint",
  // Names refer to the plugin's styles; objects add new ones.
  options: { maplibre: { styles: ["light", { name: "trails", style: trailsStyle }], defaultStyle: "trails" } },
})

options.maplibre takes style, styles and defaultStyle, which work like the plugin options. It's typed for geopoint and geopointRadius fields. Invalid field options show an error in place of the input.

For arrays, set them on the member type, not the array field:

defineField({
  name: "stops",
  type: "array",
  of: [{ type: "geopoint", options: { maplibre: { style: openFreeMapStyle("positron") } } }],
})

PMTiles and Protomaps

PMTiles is a single-file tile archive you can host on any static storage, with no tile server. MapLibre reads it through a protocol handler, which setupMaplibre registers before the first map loads:

npm install pmtiles @protomaps/basemaps

import type { StyleInput } from "sanity-plugin-maplibre"
import { layers, namedFlavor } from "@protomaps/basemaps"
import { Protocol } from "pmtiles"

function protomapsStyle(flavor: "light" | "dark"): StyleInput {
  return {
    version: 8,
    glyphs: "https://protomaps.github.io/basemaps-assets/fonts/{fontstack}/{range}.pbf",
    sprite: `https://protomaps.github.io/basemaps-assets/sprites/v4/${flavor}`,
    sources: {
      protomaps: {
        type: "vector",
        url: "pmtiles://https://maps.example.com/region.pmtiles",
        attribution: "<a href=\"https://protomaps.com\">Protomaps</a> © <a href=\"https://openstreetmap.org/copyright\">OpenStreetMap</a>",
      },
    },
    layers: layers("protomaps", namedFlavor(flavor), { lang: "en" }),
  }
}

maplibreInput({
  setupMaplibre: (maplibre) => {
    maplibre.addProtocol("pmtiles", new Protocol().tile)
  },
  styles: [{ name: "protomaps", title: "Protomaps", style: protomapsStyle("light"), dark: protomapsStyle("dark") }],
})

The host must support HTTP range requests and CORS; Cloudflare R2, S3 and most CDNs do. Protomaps publishes builds of the whole planet and tools to cut out a region. setupMaplibre is also the place for other one-time setup, like maplibre.setRTLTextPlugin().

Geocoding

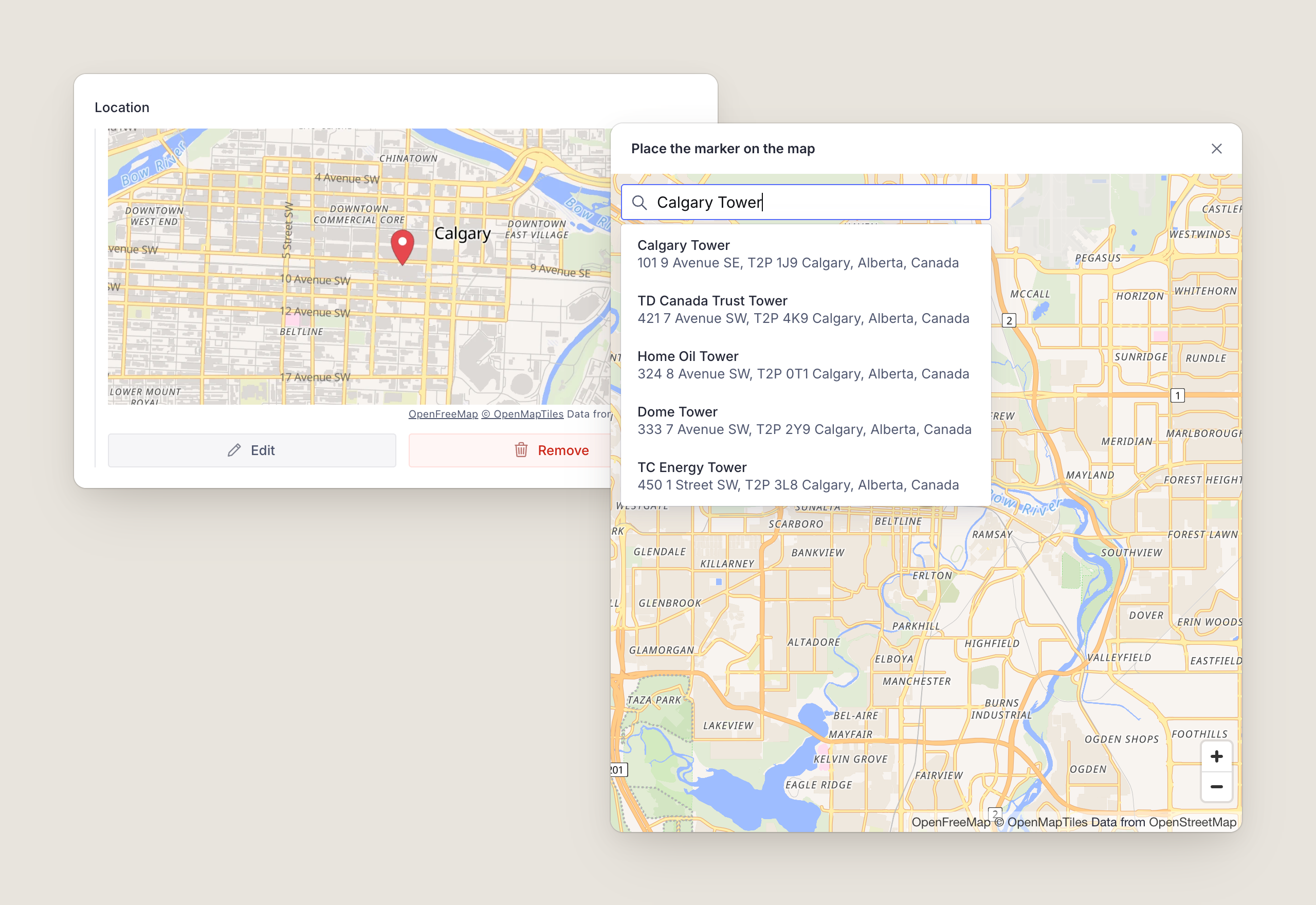

The search box sits in the corner of the map. Picking a result moves the point there and zooms the map to fit the place.

Photon (default)

Photon is an OpenStreetMap search engine built for search-as-you-type. The plugin waits 300 ms after the last keystroke, needs at least three characters, cancels requests the editor has typed past, caches results and ranks places near the map's center higher.

import { maplibreInput, photon } from "sanity-plugin-maplibre"

maplibreInput({
  geocoder: photon({
    lang: "de", // the public instance supports default, de, en and fr
    limit: 8,
    bbox: [5.9, 45.8, 10.5, 47.8], // only results in Switzerland
    layers: ["house", "street", "city"],
  }),
})

The public instance at photon.komoot.io is run by komoot for fair use, with no guarantees. If you have many editors or need an uptime promise, run your own and point baseUrl at it.

Nominatim

Nominatim is OpenStreetMap's own search. It searches when the editor presses Enter, because the public instance's usage policy doesn't allow autocomplete.

import { maplibreInput, nominatim } from "sanity-plugin-maplibre"

maplibreInput({
  geocoder: nominatim({ email: "web@example.com", countryCodes: ["ca", "us"] }),
})

On the public instance the plugin follows the policy for you:

• No autocomplete. autocomplete: true throws unless baseUrl is your own server.
• One request a second at most, queued and shared by every field and workspace using that server.
• Identification by the browser's Referer header, plus email if you set it (browsers can't set a User-Agent). Setting email lets the OSM Foundation contact you before blocking you.

For heavy use, run your own:

nominatim({ baseUrl: "https://nominatim.example.com", autocomplete: true, minIntervalMs: 0 })

Your own geocoder

Pass an object with mode and search, or just a search function, which is treated as autocomplete. search gets an AbortSignal; pass it to fetch so abandoned searches are cancelled.

import type { Geocoder } from "sanity-plugin-maplibre"

const myGeocoder: Geocoder = {
  name: "my-geocoder",
  mode: "autocomplete", // or "submit" to search on Enter
  debounceMs: 250,
  async search(query, { signal, lang, proximity }) {
    const response = await fetch(`https://geo.example.com/search?q=${encodeURIComponent(query)}`, { signal })
    const places = await response.json()
    return places.map(place => ({
      id: place.id,
      label: place.name,
      description: place.address, // optional second line
      location: { lat: place.lat, lng: place.lon },
      bbox: place.bbox, // optional [west, south, east, north]; the map fits it
    }))
  },
}

maplibreInput({ geocoder: myGeocoder })

To hide the search box, set geocoder: false.

Components

The plugin already uses these; they're exported for your own inputs and previews.

GeopointThumbnail

The array-item thumbnail as a component, for your own preview media, such as a document's location in lists and search:

import { GeopointThumbnail } from "sanity-plugin-maplibre"

defineType({
  name: "place",
  type: "document",
  fields: [/* … */],
  preview: {
    select: { title: "title", location: "location" },
    prepare: ({ title, location }) => ({
      title,
      media: <GeopointThumbnail value={location} />,
    }),
  },
})

It fills its container, draws a dot on the point (and the circle for a geopointRadius value), follows the Studio's dark mode and shows the style's attribution as a tooltip. A schema file that uses it needs a .tsx extension.

GeopointInput and GeopointRadiusInput

To use one on a single field without the plugin, pass options as geoConfig, defined once outside the component:

import { GeopointInput } from "sanity-plugin-maplibre"

const mapOptions = { defaultLocation: { lat: 51.0447, lng: -114.0719 } }

defineField({
  name: "location",
  type: "geopoint",
  components: { input: props => <GeopointInput {...props} geoConfig={mapOptions} /> },
})

GeopointRadiusInput works the same way, but the geopointRadius type itself comes from the plugin.

GeopointDiff

The before and after maps for Review changes. See Reviewing changes.

Migrating from @sanity/google-maps-input

1. Swap the package:

   npm uninstall @sanity/google-maps-input
   npm install sanity-plugin-maplibre

2. Rename the plugin and remove the API key:

   - import {googleMapsInput} from '@sanity/google-maps-input'
   + import {maplibreInput} from 'sanity-plugin-maplibre'

     plugins: [
   -   googleMapsInput({apiKey: 'my-api-key', defaultZoom: 8, saveZoom: true}),
   +   maplibreInput({defaultZoom: 8, saveZoom: true}),
     ]

3. Update the GeopointDiff import, if you use it:

   - import {GeopointDiff} from '@sanity/google-maps-input'
   + import {GeopointDiff} from 'sanity-plugin-maplibre'

Your content doesn't change: geopoint and geopointRadius values keep the same shape, including zoom (with saveZoom) and radius in meters.

The new options are style, styles, defaultStyle, setupMaplibre, geocoder, radiusUnit and workerUrl, plus per-field options.maplibre. Maps also follow the Studio's dark mode.

How previews work

There's no keyless static map API; previews are rendered in the browser. Hidden MapLibre maps, one per style and at most three, draw each view and save it as an image. Images are cached, render when they scroll into view, and are skipped if no longer needed. However many previews a page has, it uses at most three WebGL contexts, of which browsers allow only a few. The hidden maps shut down after 30 seconds idle.

MapLibre loads the first time a map or preview appears and isn't part of the Studio's initial bundle. Importing the plugin in Node, for example in a CLI script or a test, never loads it.

Network and CSP

With the defaults, editors' browsers request:

Other styles, PMTiles archives and geocoders add their own hosts.

MapLibre 6 can't find its worker inside a bundled app like the Studio. By default the plugin loads the worker from jsDelivr, pinned to the exact MapLibre version it ships with. To self-host it instead, copy node_modules/maplibre-gl/dist/maplibre-gl-worker.mjs to your Studio's static/ folder and set:

maplibreInput({ workerUrl: "/static/maplibre-gl-worker.mjs" })

The worker URL is set once per page: with several workspaces, the first map's workerUrl is used.

If your Studio sets a Content Security Policy, allow those hosts in connect-src, plus blob: in worker-src (only needed for a cross-origin worker) and in img-src (for the previews).

Troubleshooting

The map stays grey, or the console mentions MapLibre's worker. The worker didn't load. Check that cdn.jsdelivr.net is reachable and allowed by your CSP (worker-src blob:), or self-host the worker.

"The map couldn't load" in the dialog. The style failed to load: check its URL, or that a JSON file in static/ is valid style JSON. With several styles, editors can switch to another from the menu. Missing tiles alone don't cause this.

"Map preview unavailable". A preview couldn't render; the console says why. Usually the style failed to load or the browser has WebGL turned off.

"This field's map options are invalid". The field's options.maplibre is wrong, for example a style name the plugin doesn't define. The message says what to fix.

Console warnings about highway-shield or road_shield filters. They come from OpenFreeMap's Liberty style, which MapLibre 6 checks more strictly than earlier versions. The map isn't affected.

A PMTiles map is blank. Check that setupMaplibre registers the protocol, and that the host answers range requests with CORS headers.

Search ignores the language. The public Photon instance only supports default, de, en and fr; other languages are left out of the request.

Limitations

• Coordinates can't be typed in. Points are placed on the map, by search, or at the map's center.
• Map thumbnails replace geopoint previews in arrays. Elsewhere, such as in Portable Text, Sanity shows its built-in text preview.
• No satellite imagery by default; there's no free source. Use a style that has it.
• The public Photon and Nominatim instances are for fair use. For many editors, run your own.

Development

pnpm install
pnpm dev        # the test Studio in dev/, against the source in src/
pnpm test       # unit tests, watch mode
pnpm e2e        # browser tests against the harness page
pnpm check      # lint, typecheck, unit tests, build, smoke test

pnpm dev opens a Studio with three workspaces: a style switcher with Photon, Nominatim with saveZoom and miles, and PMTiles. It uses Built by Field's dev project; to point it at your own, copy dev/.env.example to dev/.env and set your project ID and dataset. For quick checks without logging in, pnpm --filter sanity-plugin-maplibre-dev harness serves the map components on their own at http://localhost:3334.

See CONTRIBUTING.md for the code layout, the tests and how releases work.

Credits

Map data © OpenStreetMap contributors, tiles by OpenFreeMap and OpenMapTiles, search by Photon (komoot) and Nominatim, rendering by MapLibre. If the plugin is useful to you, consider supporting OpenFreeMap and the OpenStreetMap Foundation.
