Deploy to Vercel

deploy-vercel-from-sanity

Trigger and monitor Vercel deployments directly from Sanity Studio — no context switching required.

Using Sanity but not setting it up? Your developer installs this once. Day to day you'll only use the Deploy tab — see Using it day to day.

npm install @liiift-studio/deploy-vercel-from-sanity

Why this one

There is an established alternative, sanity-plugin-vercel-deploy. Reasons you might pick this instead:

• One build spans Studio v3.30 → v6. @sanity/icons v5 and @sanity/ui v4 both moved components out of their barrels; this plugin resolves them from the installed package at runtime rather than shipping a version-locked build. See Studio compatibility.
• Proxy mode keeps the Vercel token — and the deploy hook URLs — off the dataset entirely, so viewers cannot read a credential or trigger a build. (The browser still holds a status key that can cancel a running build; see Security.)
• Inline build logs and cancel, not just a trigger button.
• Zero runtime dependencies.

If none of that matters to you, the alternative is more widely used and simpler.

Using it day to day

For whoever presses the button:

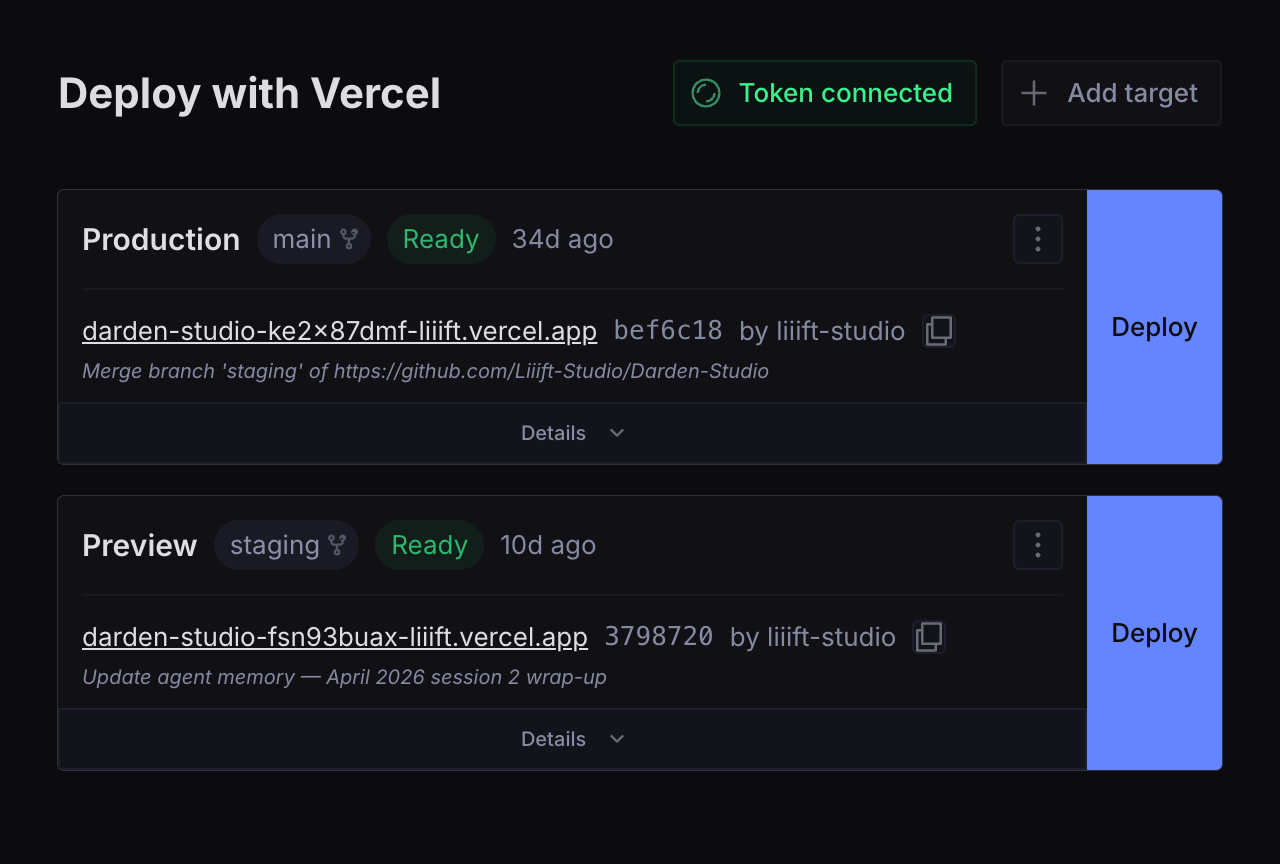

• Open Deploy in the Studio sidebar. Each card is one environment — Production is your live public site; Preview is a copy only your team sees.
• Press Deploy to rebuild that environment with the content you have already published. It does not publish drafts — anything still in draft stays unpublished.
• The badge tells you where it is: Queued → Building → Ready. A typical build is a couple of minutes; the card shows a running timer.
• Ready means the site is live. Error means the build failed — press Details → Show error details and send those lines to your developer.
• Pressing Deploy twice is harmless; Vercel just builds again.

Quick start

1. Add the plugin to your Sanity config

// sanity.config.ts
import { defineConfig } from 'sanity'
import { vercelDeploy } from '@liiift-studio/deploy-vercel-from-sanity'

export default defineConfig({
  // ...
  plugins: [
    vercelDeploy({ title: 'Deploy', name: 'vercel-deploy' }),
  ],
})

2a. Connect your Vercel API token (direct mode)

Open the Deploy tab in Sanity Studio and enter a Vercel API token when prompted.

To create a token: vercel.com → Settings → Tokens → Create, and set Scope to the team that owns your projects.

Scope the token as narrowly as Vercel lets you. The plugin only reads deployments, reads build logs, and cancels — all of which work with a team-scoped token as long as each target has its Team ID set. A Full Account token also works, but it can read and write everything in your Vercel account, which is far more than this needs.

The token is stored in a config.vercelDeploy document in your dataset and shared across all authenticated studio users.

2b. Or set up the proxy (proxy mode)

Skip the token entirely. Deploy the route, set its environment variables, add the Sanity webhook, then pass mode, proxyUrl and statusKey to the plugin — full walkthrough in proxy/README.md.

3. Add a deploy target

Each target is an environment — Production, Preview, or anything else.

In the Studio (recommended): open the Deploy tab and click Add target in the top-right. The form validates the hook URL, and in proxy mode it asks for a Proxy Key instead. This is the path the screenshot above is showing.

To get your deploy hook URL: Vercel Dashboard → Project → Settings → Git → Deploy Hooks → Create Hook.

cat > target.json << 'EOF'
{
  "_type": "vercel_deploy",
  "_id": "vercel-deploy-production",
  "name": "Production",
  "url": "https://api.vercel.com/v1/integrations/deploy/YOUR_PROJECT_ID/YOUR_HOOK_ID",
  "teamId": "team_xxxxxxxx"
}
EOF

sanity documents create target.json

Available fields on each vercel_deploy document:

A target needs either url or proxyKey; the schema enforces that.

Plugin options

Two modes

Direct mode is the default and needs no infrastructure. Use it when everyone with Studio access is already trusted with Vercel access.

Reach for proxy mode when that is not true — untrusted editors, a public dataset, or a token you cannot afford to have read. Note that the hook URL matters as much as the token: it is itself a deploy credential, so in direct mode the section below is a UI convenience, not a security control.

vercelDeploy({
  mode: 'proxy',
  proxyUrl: 'https://your-site.com/api/vercel-deploy',
  statusKey: process.env.SANITY_STUDIO_DEPLOY_STATUS_KEY,
})

Setup guide: proxy/README.md.

Restrict access to editors and above

By default the Deploy tab is visible to all authenticated users. To hide it from viewers:

This hides the tab. In direct mode it does not prevent deploying — the hook URL is in the dataset, and anyone who can read it can trigger a build without the Studio. Use proxy mode if you need that actually enforced.

Filter on the tool name you actually configured. The snippet below uses the default vercel-deploy; if you passed a custom name, match that instead or the filter silently does nothing.

// sanity.config.ts
tools: (prev, { currentUser }) => {
  const canDeploy = currentUser?.roles?.some(r =>
    ['administrator', 'editor'].includes(r.name)
  )
  return canDeploy ? prev : prev.filter(t => t.name !== 'vercel-deploy')
},

How it works

Direct mode

flowchart LR
    subgraph studio["Sanity Studio"]
        tool["Deploy tool"]
    end
    subgraph dataset["Sanity dataset"]
        targets["vercel_deploy docs<br/>(deploy targets)"]
        cfg["config.vercelDeploy doc<br/>(API token)"]
    end
    subgraph vercel["Vercel"]
        hook["Deploy hook<br/>POST /v1/integrations/deploy/…"]
        api["REST API<br/>/v6/deployments · /v2/.../events"]
    end

    tool -- "1 - reads targets" --> targets
    tool -- "2 - reads token" --> cfg
    tool -- "3 - click Deploy" --> hook
    hook -- "4 - queues a build" --> api
    api -- "5 - poll every 5s while active" --> tool
    tool -. "toast on Ready / Error / Canceled" .-> tool

Proxy mode

flowchart LR
    subgraph studio["Sanity Studio (browser)"]
        tool["Deploy tool<br/>holds no credential"]
    end
    subgraph dataset["Sanity dataset"]
        targets["vercel_deploy docs<br/>name + proxyKey only"]
        req["vercelDeploy.request<br/>created on click"]
    end
    subgraph server["Your server"]
        proxy["Deploy proxy<br/>VERCEL_API_TOKEN<br/>hook URLs"]
    end
    subgraph vercel["Vercel"]
        hook["Deploy hook"]
        api["REST API"]
    end

    tool -- "reads targets" --> targets
    tool -- "1 - Deploy click<br/>write ACL gates this" --> req
    req -- "2 - signed webhook" --> proxy
    proxy -- "3 - POST hook URL" --> hook
    hook --> api
    tool -- "4 - status, via status key" --> proxy
    proxy -- "5 - reads with server-held token" --> api

No Vercel credential reaches the browser, and a viewer cannot create the request document, so a viewer cannot deploy. The browser does hold the status key, which can cancel a running build for the configured targets — see Security. Setup: proxy/README.md.

Direct mode, step by step

1. Deploy targets are stored as vercel_deploy documents in your Sanity dataset.
2. The plugin fetches the last 10 deployments for each target from the Vercel API, filtered to those triggered by that hook.
3. While a deployment is active (Queued / Initializing / Building), it polls every 5 seconds.
4. Clicking Deploy POSTs to the hook URL — Vercel queues a new build.
5. If a deploy fails, clicking Show error details fetches the last 30 build log lines from the Vercel API inline.
6. A Studio toast notification fires when a deployment completes (Ready, Error, or Canceled).

Polling and rate limits — Active deployments are polled every 5 seconds per target. With many simultaneous active deploys, API call volume adds up. Vercel's rate limit is generous for normal use, but studios with a large number of targets triggering concurrently may hit 429 errors. The plugin surfaces these with a clear message.

Troubleshooting

"Vercel API 401 — token is invalid or expired"

Your Vercel API token has been revoked or expired. Go to Vercel → Settings → Tokens, create a new token scoped to the team that owns your projects, and reconnect it in the Deploy tab (top-right → Token connected button).

"Vercel API 403 — token lacks the required permissions"

The token exists but cannot see the project. Check the target's Team ID is set — a team-scoped token needs it to resolve team-owned projects. If the project is personal rather than team-owned, the token must be scoped to that personal account.

"Vercel API 404 — resource not found. Check the deploy hook URL and team ID."

Either the deploy hook URL is incorrect, or the project belongs to a Vercel team and the Team ID field is missing from the deploy target. Find your Team ID at Vercel → Settings → General → Team ID (starts with team_) and add it to the deploy target via the edit menu.

"Vercel API 429 — rate limit reached"

The plugin is making too many API calls at once (common when many targets are all actively building). Wait a few seconds — polling will resume automatically.

Deploy triggers but status never updates

Direct mode — usually a missing token. The plugin can trigger deploys via the hook URL without one, but reading status back needs an API token. Connect one using the button in the top-right of the Deploy tab.

Proxy mode — the token button is deliberately hidden, so this is not it. Check, in order: the browser console for a blocked CORS preflight (set VERCEL_DEPLOY_ALLOWED_ORIGINS on the proxy to your Studio's origin); that the plugin's statusKey and the proxy's VERCEL_DEPLOY_STATUS_KEY hold the same value; and that the target's Proxy Key matches a VERCEL_DEPLOY_PROJECT_* variable. Deploy failures land in Sanity → API → Webhooks → delivery log, never in the Studio — see proxy/README.md.

Commit SHA does not link to GitHub

The SHA link requires Vercel to return GitHub repo metadata with the deployment. This is present on deployments triggered by GitHub pushes but not on manually triggered hook deploys. Manually triggered deploys will show the SHA as plain text with a tooltip.

No error logs shown after a failed build

If "No stderr or stdout was captured" appears, the build may have failed before producing log output, or the events API returned no lines. Use Open in Vercel to view the full build log in the Vercel dashboard.

Security

API token storage — The Vercel API token is stored in cleartext in a config.vercelDeploy document of type vercelDeploy.config. Sanity has no per-document access control at this tier, so the token is readable by anyone who can read the dataset — and if the dataset is public, which is the usual setup for a statically generated front-end, that includes unauthenticated requests to the public GROQ API. A viewer-role member who cannot write a single document can also read it. A Vercel API token can read every environment variable in every project it can see — which for most teams means the database URL, payment keys, and every other production secret — as well as deploy arbitrary code to your production domain. Scope it to a single team, and understand that leaking it leaks those secrets. The document type is deliberately not registered in the schema — registering it would list a "Vercel Deploy Configuration" entry in the Structure sidebar for every editor. Revoke the stored token from the plugin instead: Deploy → Token connected → Remove token. Audit who has access to your Sanity project at sanity.io → Project → Members, and never store a Vercel token in a public dataset. If your studio includes untrusted editors, use proxy mode — the plugin ships the proxy.

Two credentials, not one — in direct mode the dataset holds both the API token and a deploy hook URL on every target. The hook URL is itself a deploy credential: anyone who can read it can POST it and trigger a build, with no Studio and no role. That is why Restrict access to editors hides the tab but does not enforce anything, and why proxy mode moves both server-side.

Proxy mode status key — the key that reaches the browser permits reading deployment status and build logs for the configured targets, and cancelling their in-progress deployments. Cancel is a write, so it is not a read-only key. Requests are scoped to the configured projects — the proxy verifies a deployment belongs to the target's project before reading or cancelling it. That is broader than the targets you configured: it includes any deployment in those projects, such as git-push builds the plugin never lists.

Assume the key is obtainable: a hosted Studio bundle is fetchable without logging in. In the worst case that means anyone can list deployments, read their build logs — which can contain secrets a failed build printed — and cancel a running production build. CORS does not prevent this; it constrains browsers, not curl. If that is unacceptable, see What this does not solve. Treat the key as public, because it ships in the Studio bundle.

Deploy hook URL validation — triggerDeploy validates that the hook URL matches api.vercel.com/v1/integrations/deploy/ before making the request, preventing SSRF from a tampered document.

External links — All external links use target="_blank" rel="noreferrer" and every href is validated before rendering: safeHref() rejects any non-http(s) scheme, and deployment hostnames from the API go through deploymentHref(), which rejects anything that is not a bare host. Both block javascript: injection and host substitution from a compromised API response.

GROQ queries — All GROQ queries in this plugin are static strings — no user input is interpolated.

Requirements

• Sanity Studio v3.30 or newer, through v6
• React 18 or 19 (Studio v5 and v6 require React 19)
• Node 20.19+ or 22.12+
• A Vercel account with at least one project and a deploy hook configured

Zero runtime dependencies — react, react-dom, sanity, @sanity/ui and @sanity/icons are peer dependencies provided by your Studio; the plugin ships nothing else.

Why v3.30 and not v3.0? sanity@3.0 pulls @sanity/ui v1, and this plugin needs v2 or newer. @sanity/ui reaches 2.x at sanity@3.30.0.

Studio compatibility

A single build supports the whole range. @sanity/icons v5 and @sanity/ui v4 both moved components out of their barrel files, so the plugin resolves every @sanity/ui and @sanity/icons value from the installed package at runtime rather than importing names that exist on only one major.

Behaviour depends on the resolved packages, not on the Studio version — a lockfile that hoists a different major changes which row applies:

The built-in equivalents are functional rather than pixel-identical to Studio's own: the overflow menu implements the WAI-ARIA menu button pattern locally, and toasts render in a live region anchored to the bottom-right of the tool.

Changelog

See CHANGELOG.md.

Tests and CI

npm test        # unit tests
npm run lint    # includes the compat-seam import rule
npm run typecheck

Unit tests cover the proxy's authorization boundary (fail-closed status key, per-project deployment scoping, role gating, SSRF guard on hook URLs) and the URL validators that guard every anchor the plugin renders. prepublishOnly runs typecheck and tests before building, so a release cannot ship past them.

Contributing

Issues and pull requests welcome at github.com/Liiift-Studio/Deploy-Vercel-from-Sanity.

Local development, npm link, and publishing steps are documented in SETUP.md.

License

MIT
