The Schema

In Sanity all your content is stored in documents. Each document is stored as JSON and may contain any number of fields to hold your content. This could be a document in Sanity:

{
  "_id": "95fcfaf6-62f1-4e02-bb4d-3e57f92cd50b",
  "_type": "author",
  "name": "William Gibson",
  "born": 1948,
  "nationality": "US",
  "keywords": ["cyberpunk", "sci-fi"],
  "birthPlace": {
    "_type": "geopoint",
    "lat": "33.8439305",
    "lng": "-79.0828826"
  }
}

This document has the unique id "95fcfaf6-62f1-4e02-bb4d-3e57f92cd50b", is of the type "author" and has a number of fields describing that author. The purpose of your schema is to describe all the document types in your project in terms of the kinds of fields they may contain.

Your first schema

When the Sanity Studio starts up it defaults to look for the schema in a file called schema.js in the folder schema in your project folder. Let's build a very very simple schema to get started:

// First, we must import the schema creator
import createSchema from 'part:@sanity/base/schema-creator'

// Then we give our schema to the builder and provide the result to Sanity
export default createSchema({

  // We name our schema
  name: 'mySchema',

  // Then proceed to list all our document types, (just one, for now)
  types: [
    {
      // This is the display name for the type
      title: "Person",

      // The identifier for this document type used in the api's
      name: "person",

      // Documents have the type 'document'. Your schema may describe types beyond documents
      // but let's get back to that later.
      type: "document",

      // Now we proceed to list the fields of our document
      fields: [
        // This document has only one field
        {
          // The display name for this field
          title: "Name",

          // The identifier for this field used in the api's
          name: "name",

          // The type of this field
          type: "string",
        }
      ]
    }
  ]
})

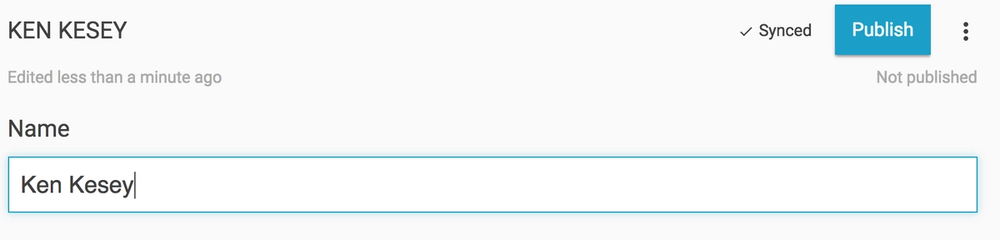

This creates a document type called "person" with one string field called "name". In the Studio a category "person" will appear in the left sidebar, and when we create one such document it will look like this:

When we then fetch a document like this through the api later, we would get something like this:

{
  "_id": "45681087-46e7-42e7-80a4-65b776e19f91",
  "_type": "author",
  "name": "Ken Kesey"
}

A document referencing another document

Now let's make a very simple document describing a book. In our array of types, we'll add this:

{
  title: 'Book',
  name: 'book',
  type: 'document',
  fields: [
    {
      title: 'Title',
      name: 'title',
      type: 'string'
    },

    {
      title: 'Cover',
      name: 'cover',
      type: 'image'
    },

    {
      title: 'Author',
      name: 'author',
      // A reference is a way to point to another document
      type: 'reference',
      // This reference is only allowed to point to a document of the type person,
      // we could list more types, but let's keep this simple:
      to: [{type: 'person'}]
    }
  ]
}

This creates the document type "book" with a title, a cover-image and an author. The author field is of the type reference which means it will refer to another document. In the to-field we describe what kind of documents this reference is allowed to refer to. We list one rule, that the type can be author.

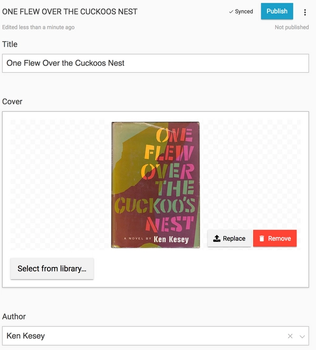

The form will look like this:

When we fetch this document through the api, we'll get this:

{
  _id: "d1760c53-428c-4324-9297-ac8313276c45",
  _type: "book",
  title: "One Flew Over the Cuckoos Nest",
  cover: {
    _type: "image",
    asset: {
      _ref: "image-Su3NWQ712Yg0ACas3JN9VpcS-322x450-jpg",
      _type: "reference"
    }
  },
author: {
_ref: "45681087-46e7-42e7-80a4-65b776e19f91",
_type: "reference"
}
}

As you see, the author field have no mention of Ken Kesey, but has the field _ref that contains the id of the Ken Kesey document. When you fetch documents with references, you can easily instruct the api to replace the reference with the actual content of the target document. You can read more on this in the Query-tutorial.

One use of arrays

Let's talk about arrays: Some books have more than one author. We should improve the Book-document type by making the author-field an array of references:

  {
    title: 'Authors',
    name: 'authors',
    type: 'array',
    of: [{
      type: 'reference',
      to: [{type: 'author'}]
    }]
  }

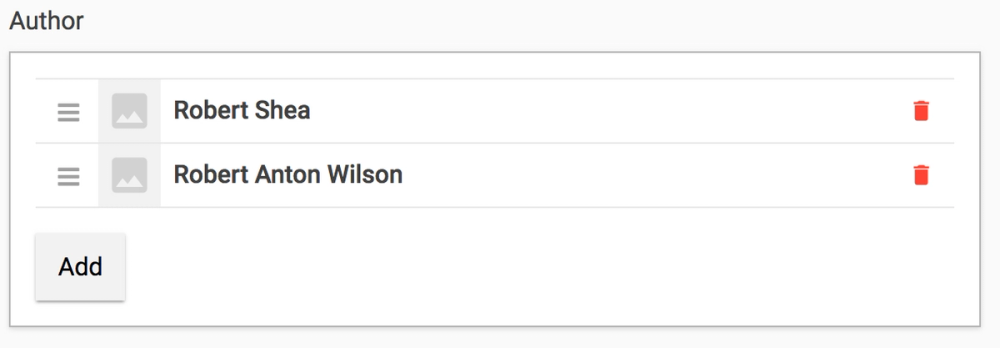

Now the authors-field looks like this:

And the document comes out of the api like this:

{
  _id: "drafts.e7f370d0-f86f-4a09-96ea-12f1d9b236c4",
  _type: "book",
  title: "The Illuminatus! Trilogy",
  cover: {
    _type: "image",
    asset: {
      _ref: "image-Ov3HwbkOYkNrM2yabmBr2M8T-318x473-jpg",
      _type: "reference"
    }
  },
authors: [
{
_ref: "9a8eb52c-bf37-4d6e-9321-8c4674673198",
_type: "reference"
},
{
_ref: "ee58f2ff-33ed-4273-8031-b74b5664ff5e",
_type: "reference"
}
]
}

Organizing your schema

Finally a note on organizing your files. In this example we piled both our document types into the same JavaScript file. Don't do that; it gets out of hand fast. We recommend describing each document type in a separate file in this manner:

// In the file schemas/schema.js
import createSchema from 'part:@sanity/base/schema-creator' import person from './person' export default createSchema({ name: 'mySchema', types: [ person ] })
// In the file schemas/person.js
export default { title: "Person", name: "person", type: "document", fields: [ { title: "Name", name: "name", type: "string", } ] }

That covers the very basics, but there is loads more! Now, let's dive into best practices when modelling content with Sanity.
